Precision Fabric Engineering & Industrial Weaving
Arun Trading Company delivers world-class woven fabrics engineered for baby articles, apparel, and technical textiles. Powered by 16 Tsudakoma Air-Jet Looms, Karl Mayer Sizing, and Riley 7-Ball Steam Calendaring.
OEKO-TEX® STANDARD 100 Certificate
Arun Trading Company is officially certified by Hohenstein Laboratories GmbH & Co. KG (Germany) under Certificate No. 26.HIN.44222. Tested for harmful substances and guaranteed safe for humans & infants.
Scope: Woven fabrics made of 100% cotton, polyester/cotton in raw white, sized, white, bleached white, reactive yarn dyed, pigment dope dyed, reactive & disperse fibre dyed.
Cert # 26.HIN.44222
Hohenstein HTTI
Production Sequence & Machinery Flow
From raw yarn sizing to 7-ball steam calendaring and digital selvedge inspection, our integrated workflow guarantees uncompromised quality for Style #3517 and complete fabric range.

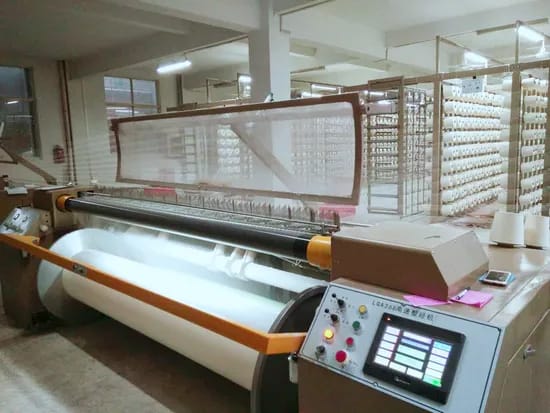

Stage 1: Warp Yarn Sizing
Warp ends sized on 2012 Karl Mayer high-speed sizing unit running at 800 RPM. Sizing pickup maintained at 18% (retaining 17–17.5% post weaving).
.jpeg)

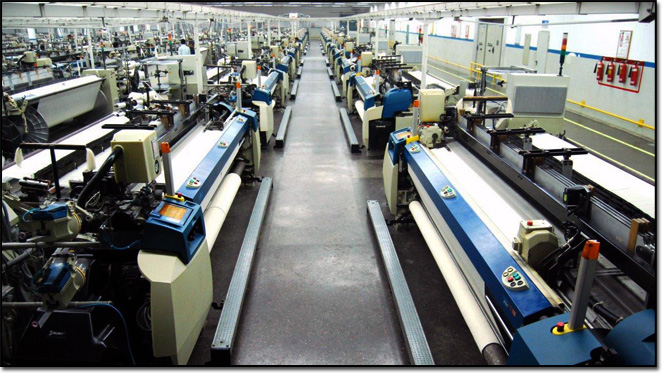

Stage 2: Precision Air-Jet Weaving
Weaving executed on 16 units of Tsudakoma Model ZAX 9100 (190 cm width) Air-Jet looms operating at 700 RPM speed with zero structural distortion.

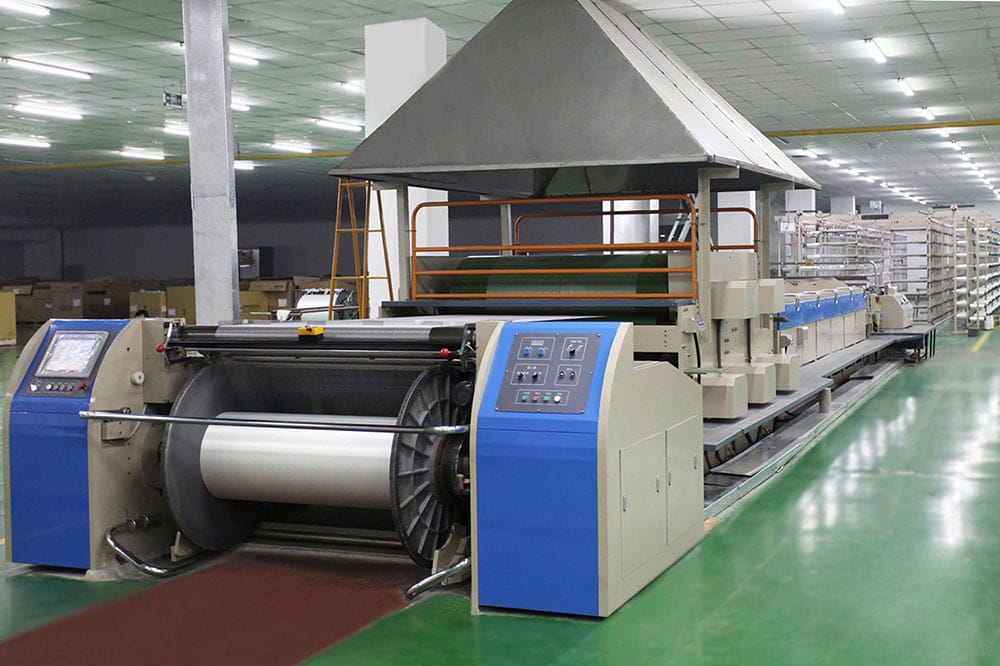

Stage 3: 7-Ball Steam Calendaring Finishing
Calendaring processed on heavy-duty 7-Ball machine by Riley & Co. (3 Steel Balls @ 2 MT each + 4 Cotton Balls @ 3 MT each). Fabric is impregnated in saturated steam chamber at 115°C with 2 kg/cm² steam pressure.
Stage 4: Tensionless Inspection, Rolling & Packing
Final inspection on Super Engineering tables with top & bottom illumination, tensionless movement, selvage guider, counter-meter length tracking, and crease-free rolling (0–60 m/min variable speed).
State-Of-The-Art Machinery Fleet
Our manufacturing plant is equipped with world-leading European and Japanese machinery designed for maximum speed, consistency, and textile perfection.
Warp Sizing Unit
Karl Mayer (2012 Model)- Operating Speed: 800 RPM
- Sizing Pick-up: 18% initial (17.5% final)
- Dedicated Team: 30 Specialized Technicians
- Automation: Digital tension control
Air-Jet Weaving Looms
Tsudakoma ZAX 9100 (190 cm)- Fleet Size: 16 Air-Jet Looms
- Looms Speed: 700 RPM High Efficiency
- Dedicated Team: 18 Weavers & Operators
- Fabric Width: Up to 190 cms
7-Ball Calendaring Machine
Riley & Co. (UK Make)- Roll Config: 3 Steel Balls (2 MT) + 4 Cotton Balls (3 MT)
- Operating Temp: 115°C Saturated Steam
- Steam Pressure: 2 Kgs / sq cm
- Workforce: 50 Operators
Inspection & Rolling
Super Engineering (India)- Illumination: Top & Bottom dual illumination
- Speed Control: Variable 0 - 60 mtrs / min
- Selvage Guider: Straight uniform winding
- Workforce: 4 QA Officers
7-Ball Steam Calendaring Video Tour
Experience our 7-ball Riley & Co. calendaring machine in full industrial operation. Watch fabric passing through 115°C saturated steam impregnation rolls.

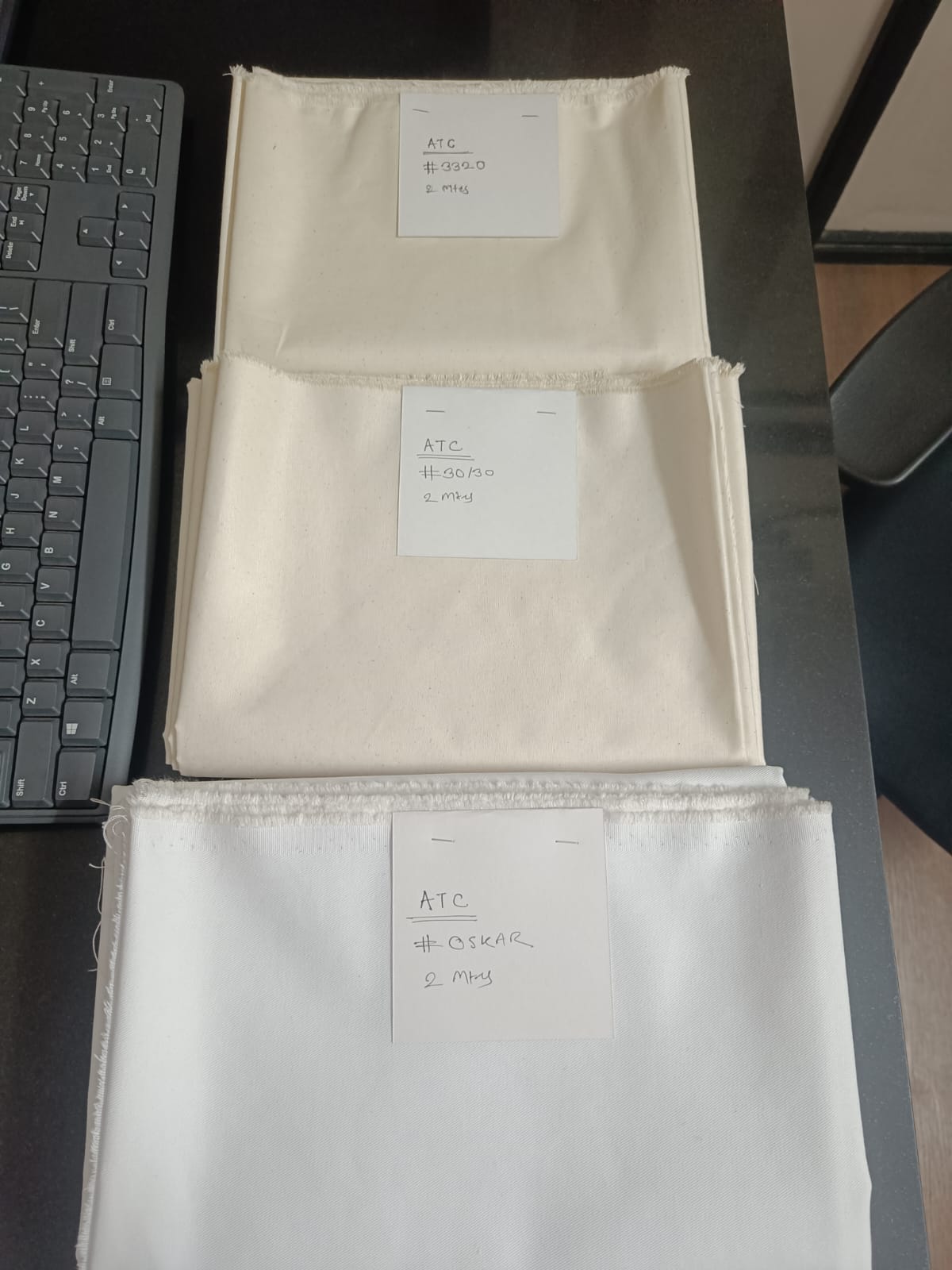

Fabric Swatches & Product Range
We manufacture a broad spectrum of woven cotton, poly-cotton, bleached white, and OEKO-TEX certified fabrics tailored for global garment manufacturers.
Flagship Style
Style #3517
High-density woven cotton fabric processed through 18% Karl Mayer sizing and Riley 7-ball calendaring for maximum softness and strength.
Sample Code
ATC #3320
Natural greige cotton fabric with consistent thread count, high tensile strength, and minimal bow/skewness.
Woven Canvas
ATC #30/30
Heavy-duty balanced weave fabric ideal for protective workwear, home textiles, and structured apparel.
Baby Class I
ATC #OSKAR
Crisp bleached white fabric pre-certified for OEKO-TEX® Standard 100 Annex 6 Class I baby articles. Ultra-gentle skin feel.
SOP: Control of Non-Conforming Product
Our factory operates under strict standard operating procedures covering raw yarn receipt through warping, weaving, calendaring, 4-point inspection, and final dispatch.
2. Warping & beam prep inspection.
3. Air-Jet loom patrol check (every 30 mins).
4. Greige fabric table inspection.
5. Final 4-point inspection before roll packing.
Contact Arun Trading Company
Reach out to our textile engineering and sales team for sample swatch requests, custom fabric specs, pricing, and factory visits.
Head Office Address
28, Flat No 9, 1st Floor
Dr Meghnad Saha Sarani (Known as Southern Avenue)
Kolkata - 700 026, West Bengal, INDIA
Mobile / Phone
Email Address
Quality Certifications
OEKO-TEX® STANDARD 100 Class I (Cert # 26.HIN.44222)
